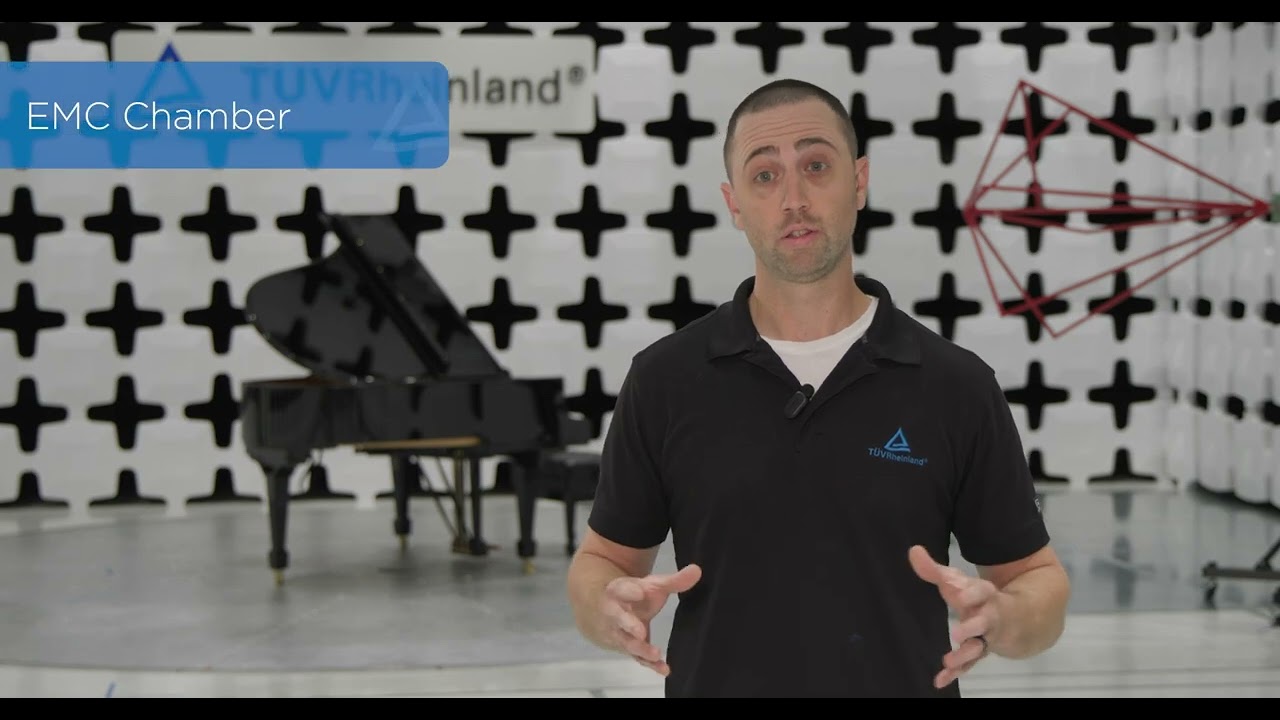

10-meter Semi-anechoic Chamber Top 1% in the US for Equipment Size

• 6m diameter turntable with 10-ton load capacity (20,000 lbs.), 5m quiet zone
• Radiated immunity:  10kHz-18GHz;  Field strength > 200V/m
• Radiated emissions up to 40 GHz
• 100 kVA AC, 5kW DC power supply;  Zero threshold sliding door (12 ft tall x 15 ft wide) / (3.65 m x 4.57 m)

Electrical, Mechanical and safety testing laboratories

• Secured 20’ x 20’ x 14’ (6 m x 6 m x 4.25 m) Labs Spaces with 8’ x 8’ (2.4 m x 2.4 m) badge access doors
• Each lab configured with 200A 120/208 3 Phase AC, and 100A 480V 3 Phase AC
• Temperature and Humidity Controlled
• Air and water connections in each laboratory. Portable Vacuum pump available as needed.
• Private Customer Data Network in each laboratory

Laser / X-ray Laboratory

• 800 sq ft (75 m2) enclosed lab space dedicated to the testing of Laser, X-Ray, UV emissions and photobiological effects of non-Laser light equipment
• Reduce turnaround time with ability to conduct all product safety testing “in-house” along with EMC tests
• 8 ft (2.4 m) entry door with no threshold to accommodate larger devices such as portable X-Ray imaging equipment

IP Laboratory – Solid Particulate

• IP 1X -4X  Protection against objects 1-50mm: hand, fingers, tools, wires
• IP 5X Dust protected enclosure – some dust may enter, does not affect operation of product
• IP 6X Dust tight enclosure – No ingress of dust
• IP 5/6X Maximum sample size 800mm x 800mm x 500mm; custom solutions for larger sizes

IP Laboratory – Liquid Ingress

• IPX1, IPX2 Product sizes Up to 800mm wide x 400mm long x 2000mm tall
• IPX3, IPX4, IPX5, IPX6 Product sizes Up to 2000mm wide x 2000mm long x 2000mm tall
• IPX7, IPX8 Product sizes Up to 1000mm wide x 1350mm long x 600mm tall
• 36,000 liters of filtered and recirculated water providing a sustainable testing method

Environmental Laboratory – Salt Spray

• Singleton SCCH22 – Exposure Zone 48in x 30in x 36in / 1200 mm x 760 mm x 915 mm
• Water Jacket design for control test environment
• Condensing Humidity Tests; Wet or Dry Bulb exposure zone

Environmental Laboratory - Vibration

• CSZ TCB-1.3 All Axis Benchtop Table, 3Hz-10kHz Random, all axis Broadband Vibration; 1 - 60 GRMS
• Temperature control -70°C to +163°C
• Advanced programable logic controllers

Environmental Laboratory - Chambers

• Extended performance and walk In capabilities
• Weisstechnik Model WPH1090/70/0/RUM/LI3 1089Cu FT –
• Sample size 144in x 121in x 108in / 3560 mm x 3070 mm x 2740 mm
• CSZ Model ZPH 32-cubit feet – sample size 38in x 38in x 38in / 950 mm x 960 mm x 960 mm

Materials Laboratory Flammability, Glow Wire, Ball Pressure and more

• Efficient, accurate testing of non-metallic and insulating materials
• Environmental condition monitoring for each setup; dedicated space for testing
• Vertical and Horizontal flammability; heat resistance; glow wire, high energy absorption and toughness

Electrical Safety, Performance, Verification, Energy Star Laboratory

• R/D Diagnostics, pre-compliance evaluations and reports
• Performance and verification testing to customer specifications, global and TÜV standards
• Product Listing and Certification testing to UL, IEC/EN, CSA and global standards

Medical Products Safety Laboratories

• 100+ years of cumulative Medical Device product safety experience
• OSHA NRTL, SCC Canada, CB scheme
• A2LA/ILAC MRA accredited
• US FDA ASCA Medical Electrical Equipment, systems basic safety and essential performance

Diagnostics, Research and Development for prototype and pre-certification

• Troubleshooting and R&D work at IC, PCB, Module, and System Level
• Work to reduce failures and improve pre-compliance results for EMC, Safety and Regulatory submissions
• Improve time to market using TÜV Rheinland experts and labs for R&D, Pre-Compliance and Certification
• Secure and dedicated customer incubator rooms with restricted access available for product development
